PS Series - Narrow Web Applications

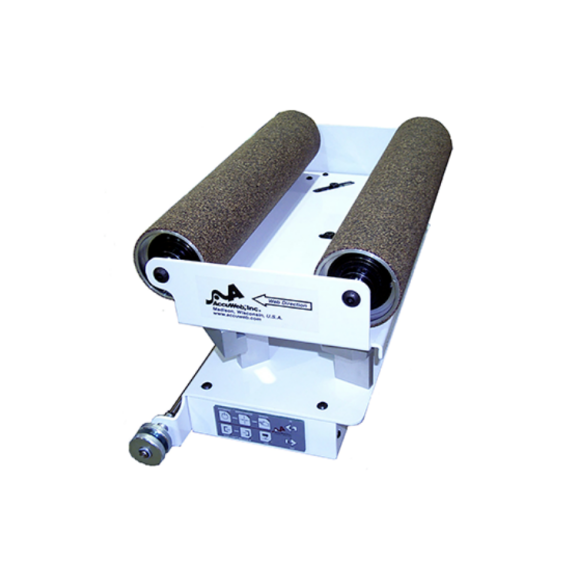

The AccuGuide PDG-PS Series, part of AccuWeb’s complete line of Positive Displacement Guide systems, are engineered for ease of use and dependability. These compact, formed steel guides are cost effective systems that deliver reliable performance. Three or more proprietary linear bearings support and secure the moving frame and idler roller assembly to its stationary base. This unique linear bearing system allows the guide assembly to be installed in a vertical, horizontal or inverted position for optimum application performance.

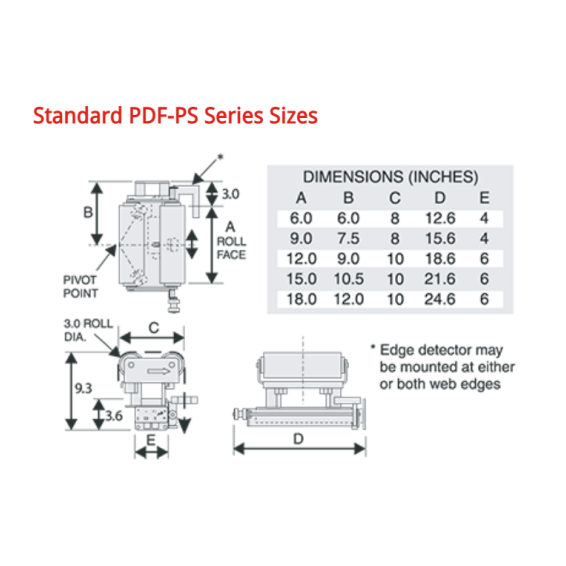

CHOOSE FROM 5 STANDARD PDG-PS SERIES WEB GUIDE ASSEMBLIES FOR A COST-EFFECTIVE SOLUTION FOR NARROW WEB APPLICATIONS.

  • Proprietary Linear Bearing System — Cam follower bearings run in a hardened track to reduce friction and wear, allowing for a faster, more accurate response.

    Simple, Drop-in Installation — Optional cantilevered brackets and guide mounted or remote mounted switch pads provide fast, trouble-free installation.


    Free-turning Idler Rollers — Free-running bearings minimize rotational torques – ideal for running light webs. Dynamically balanced rolls ensure vibration-free performance.

    Projected Pivot Point — The unique bearing system is designed to position the pivot point exactly on the incoming web plane to ensure guide accuracy.


    Mouting Options

    • Left-right or Right-left
    • Rollers upright or inverted
    • Cantilevered mounting brackets
    • Touch pad mounting on a cantilevered bracket

    Roller Options

    • Plasma coated
    • Rubber ccovered
    • Hard-coat Anodized
    • Cork covered
    • Micro-grooved
