Pneumatic Tension Brakes

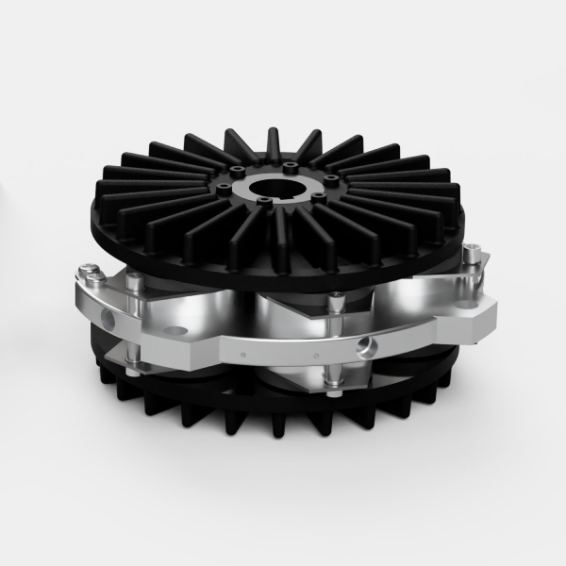

60 Series Dual Disc Brake

Same high-performance as Dover's Heavy-Duty dual disc brakes, but smaller and with a lower torque range. Easy to install and use, the 60 series brake was designed for lower tension unwind application in the converting, printing, composite, wire and filament industries. The brake can be configured for use with one cylinder or up to six cylinders.

    • Torque range from 1 lb-in. with one cylinder up to 1,000 lb-in. with six cylinders
    • Cylinders can be actuated individually
    • A range of pad friction coefficients is available to suit the application
    • Replace worn pads in seconds
